IEICOS Loading Frame

IEICOS Loading Frame
IEICOS Loading Frame
Product Code : 05
Product Description

In our wide range of products, we bring forward for our clients Loading Frame that is widely used to test structural elements like columns, beams, portal frames and other structures. Offered frame is manufactured at our highly advanced manufacturing unit under the guidance of our adroit professionals using the best quality basic components and pioneering techniques. Moreover, our prestigious clients can purchase this Loading Frame from us at most reasonable price.

Features:

  • Durability

  • Rugged design

  • High strength

  • Rust proof


Range: 10,20,50 and 100 tonnes.

The frame is fabricated from standard rolled sections for assured strength. The skeleton of basic frame is designed as self straining where no load is transferred to the ground except self weight of the frame.

The frame is designed for vertical load of up to the standard range and horizontal load of up to a fifth of the vertical load sale load. Vertical load is generally used for testing of major structural elements like beams and columns. The horizontal load is used for stimulating wind load on portal frames, tissues etc.

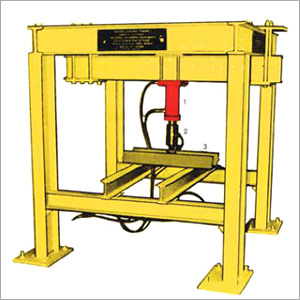

The basic frame consists of

  • Top Rectangular Frame (TRF)
  • Bottom Longitudinal Ginder (BLG)
  • Columns (C)
  • upper Cross Beams (UCB)
  • Lower Cross Beams (LCB)
  • The UCB and LCB move along longitudinal direction.

Proper placing and positioning of load is ensured by means of the UCB, while the LCB are moved in such a way as to ensure proper span of the member to be tested. Beams, columns and slabs can be tested in the Loading Frame.

Accessories Required

  • Loading arrangement
  • Manually operated Hydraulic Jack
  • Electrically operated Hydraulic Jack
  • Multi-channel Digital Automatic Data Loggers for Strain measurement. Strain Gauges, Tool kit etc.
  • IEICOS Load Cells & Digital Load Indicators.
  • IEICOS Displacement Transducers & Digital Displacement
