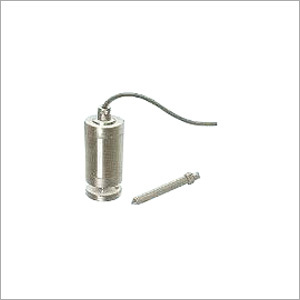

Vibration Sensors

Vibration Sensors
Vibration Sensors
Product Code : 22
Product Description

Being a customer oriented organization, we are engaged in manufacturing, exporting and supplying an excellent quality array of Vibration Sensors to our prestigious clients. Provided sensors are used as absolute vibration pickups to convert mechanical vibration into combination of vibration analyser, velocity, frequency and relative displacement. Manufactured by making use of excellence quality components and advanced technology under the direction of our skilled professionals. Moreover, these Vibration Sensors are available in various technical specifications at rock bottom prices.

Features:

  • Robust construction

  • Low maintenance

  • Perfect operation

  • Longer service life

Vibration Sensors

Contact type sensors model EDV 350 series are self generating electro dynamic type, which are mechanically fixed to the vibrating test object and operate as absolute vibration pickups. These convert mechanical vibration measure, in combination with the vibration analyser, the relative displacement (PP), velocity (AV) and frequency of vibration. This output has a frequency directly proportional to the vibration or movement of the object.

Magnetic pickups are used with any vibrating ferrous object. Otherwise ferrous coating should be provided on non-ferrous vibrating object.

The above sensors can be manufactured to suit specific requirements.

Specifications:

 Parameters Model
 EDV-350 EMV-360
Sensitive in mV/mm/Sec Nominal   1 to 2.5
 Relative
 Dynamic Frequency Range in c/s  15 to 1000
 2 to 5000
 Vibration Amplitude (Peak to Peak) in mm  1  1.5
 Maximum Amplitude in mm  2  2
 Operating Temp. in °C  10 to 40
 10 to 40
 Linearity (Within Dynamic Range)  +-3%  +-3%
 Natural Frequency in c/s  20  --
Coil Resistance on Ohms  1000 nominal
 1000 nominal
 Mounting
 Flange  Hexagonal Nuts
 Weight in Grams (nominal)  300  150
