Wear and Friction Tester

Wear and Friction Tester
Wear and Friction Tester
Product Code : Model IWFT-DD
Product Description

Wear and Friction Tester


IEICOS manufactures
Wear and Friction Tester (pin-on-disc tester) for analyzing wear and friction characteristics of sliding contact. The wear and friction tester can be operated under both dry and lubricated conditions. Various materials can be tested on the IEICOS Wear and Friction Tester (pin-on-disc machine).

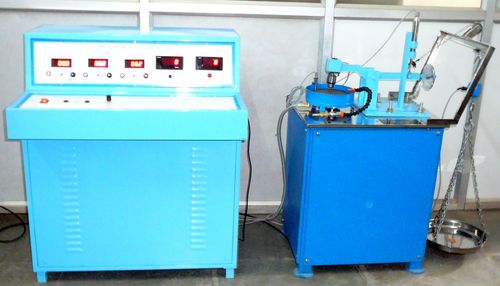

IEICOS Wear and Friction Tester consists of a stationary stylus pin and a rotating disk below it. Parameters such as Normal Load, rotational speed and wear track diameter can be varied. Sensors are provided to measure normal load, wear (displacement), frictional force, speed. Digital displays are provided for display of the above parameters. The instrument is also provided with electronic motor controller for accurate speed control of the rotating disk.


IEICOS Friction and Wear Tester

  • Model: IWFT-DD
  • Disk Rotation Range: 100-1500 RPM
  • Maximum Normal Load: 20 Kg
  • Frictional Force Range: 0 - 20 Kg
  • Wear Measurement Range: 0-4 mm
  • Pin Size: 3-12 mm
  • Disc Size: 160 mm dia x 8mm thick
  • Operating Voltage: 230V 50 Hz
  • Model: IWFT-B
  • Specs: Basic Model with motor controller with digital speed indicator and sensor/digital indicator for frictional force measurement. Normal load known from weight applied and wear (displacement) measurement is by graduated scale.


IEICOS Lubricant Re-circulating System

Provided with lubricant enclosure, pump, valve and on/off, control switch.

IEICOS Digital Temperature Indicator - 2 Channel with Temperature Sensors

For measuring inlet and outlet temperature of lubricant.

IEICOS Computer Interface Facility

For Model IWFT-DD to connect the instrument to a PC for display and data collection.

IEICOS Wear and Friction Tester Software

GUI based menu driven software to display all the parameters and to save the data to a file for analysis. Software is user friendly and works on Windows/Linux operating system.
